SIMPLY Naked

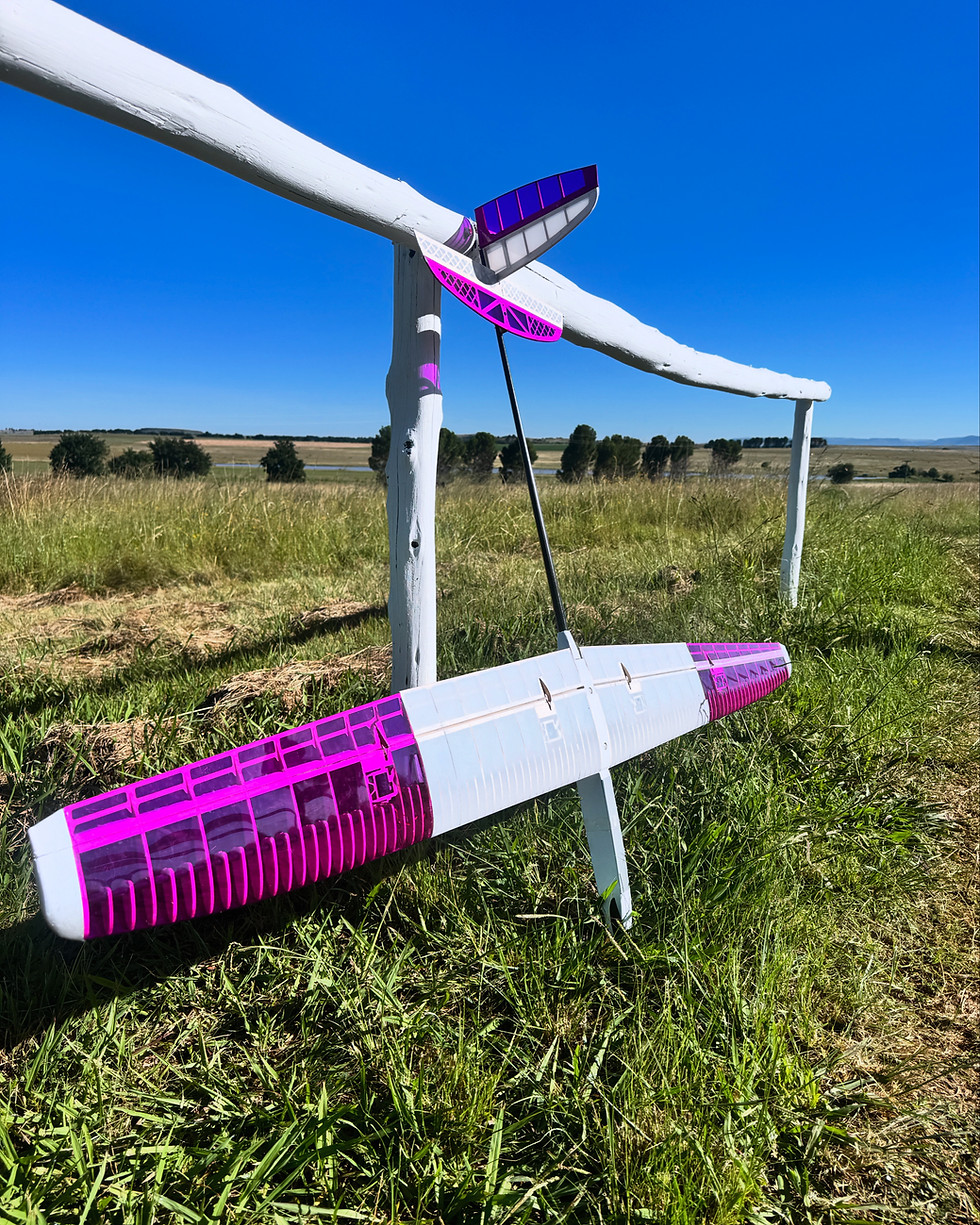

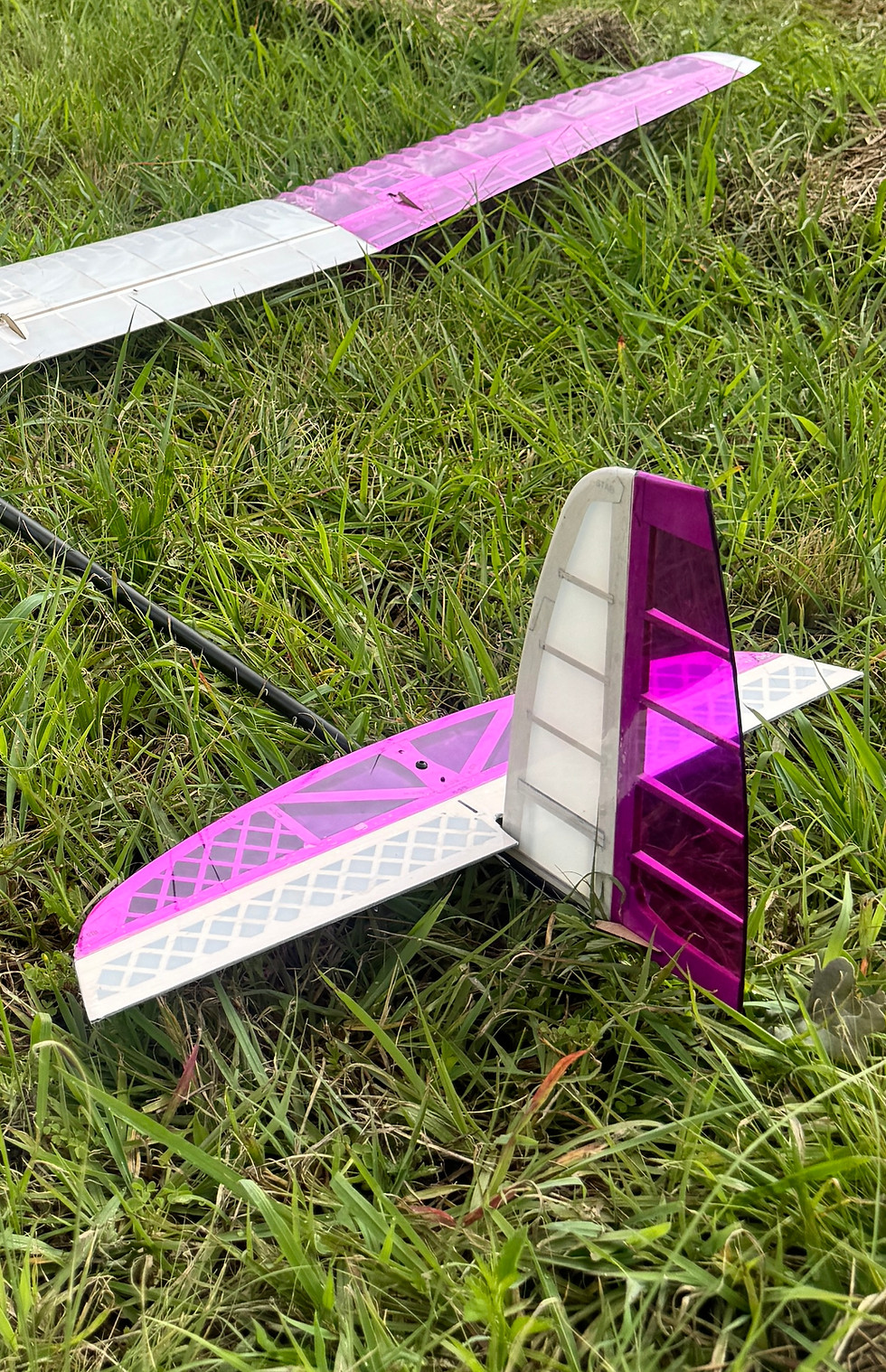

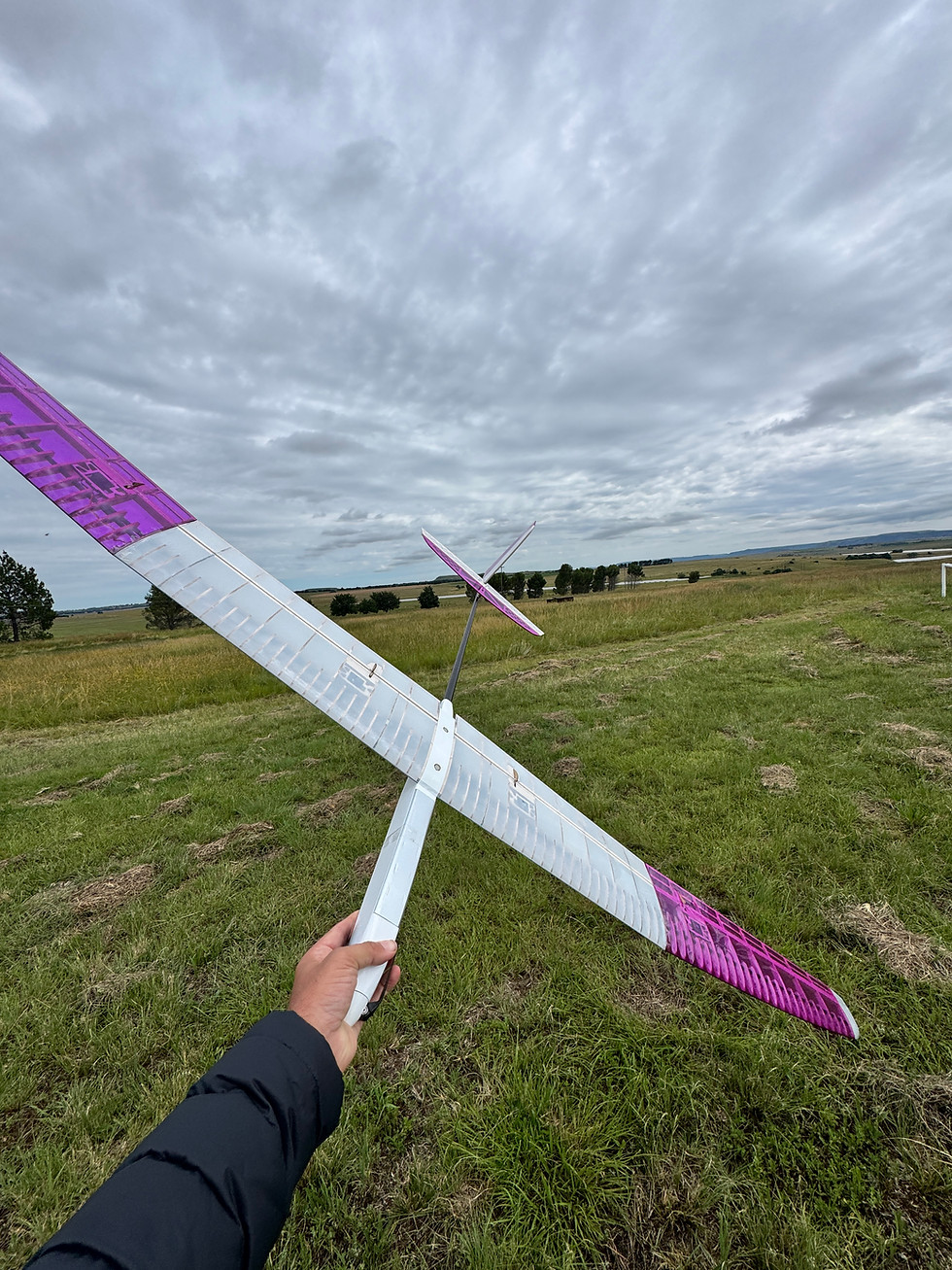

Simply Naked 2M Glider
A Kit Contains
– All balsa and plywood parts
– A colored 1:1 scale assembly plan
– Accessories pack that includes wing mounting bolts, nuts, pushrod material, GF control horns, pull-cables, torsion spring material, etc.
– Carbon tubes and rods required for assembly.
RC Groups Link
Wingspan - 1980MM
Foil - SA7035
Wing Area - 34.4 sq.dm
Wing Loading @ 510g 14.8g/dm²
Length - 1210MM
Flying Weight from ± 500g
CG - 69mm - 74mm (best at 73mm)
Controls - ELE,RUD,AIL,FLP,THR
Electronics needed
Motor - DuelSky 2527EG-1600KV (10gr Saving)
2532EG-1500KV for vertical climbs
Propeller - (2527EG) -7x4 (2532EG) - 8x4
Spinner - 30MM - 32MM
4 wing Servos: - KST A08H - Duelsky T8F
2 Fuz Servos: - KST A08 - Duelsky T8
Battery - 3cell 650mah 60c Maniax works Super
Includes laser-cut balsa & plywood parts, carbon fiber rods & tubes, accessories pack (mounting bolts, pushrods, CNC control horns, pull-cables, crimping tubes, etc.), and a full-size printed plan.
